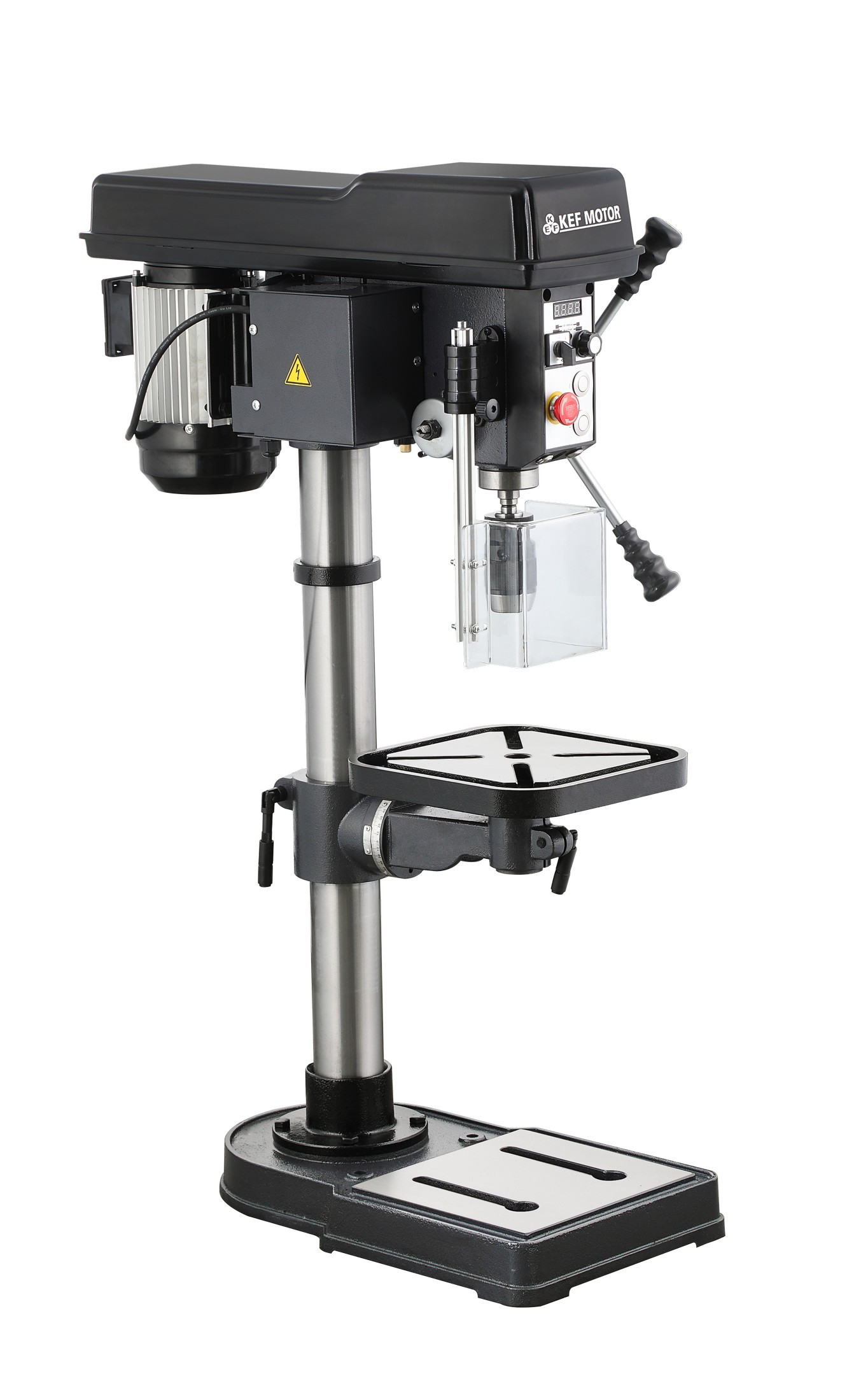

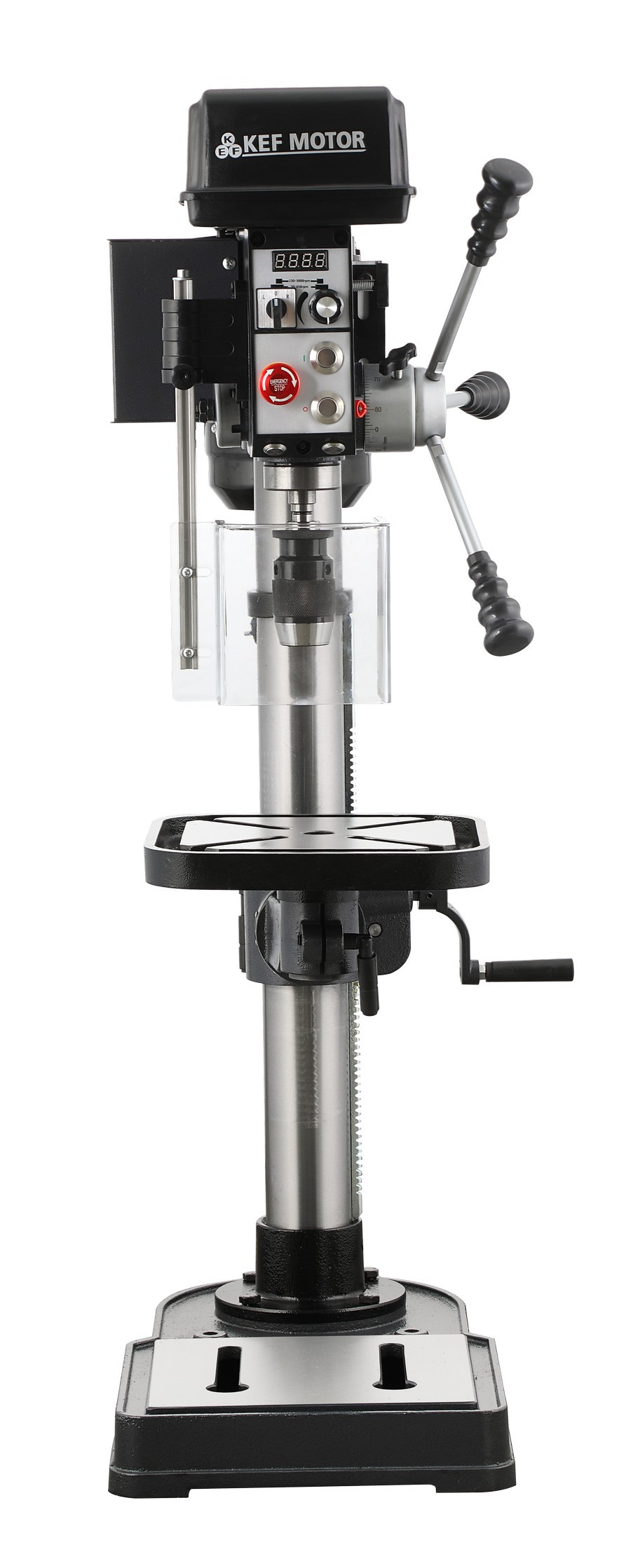

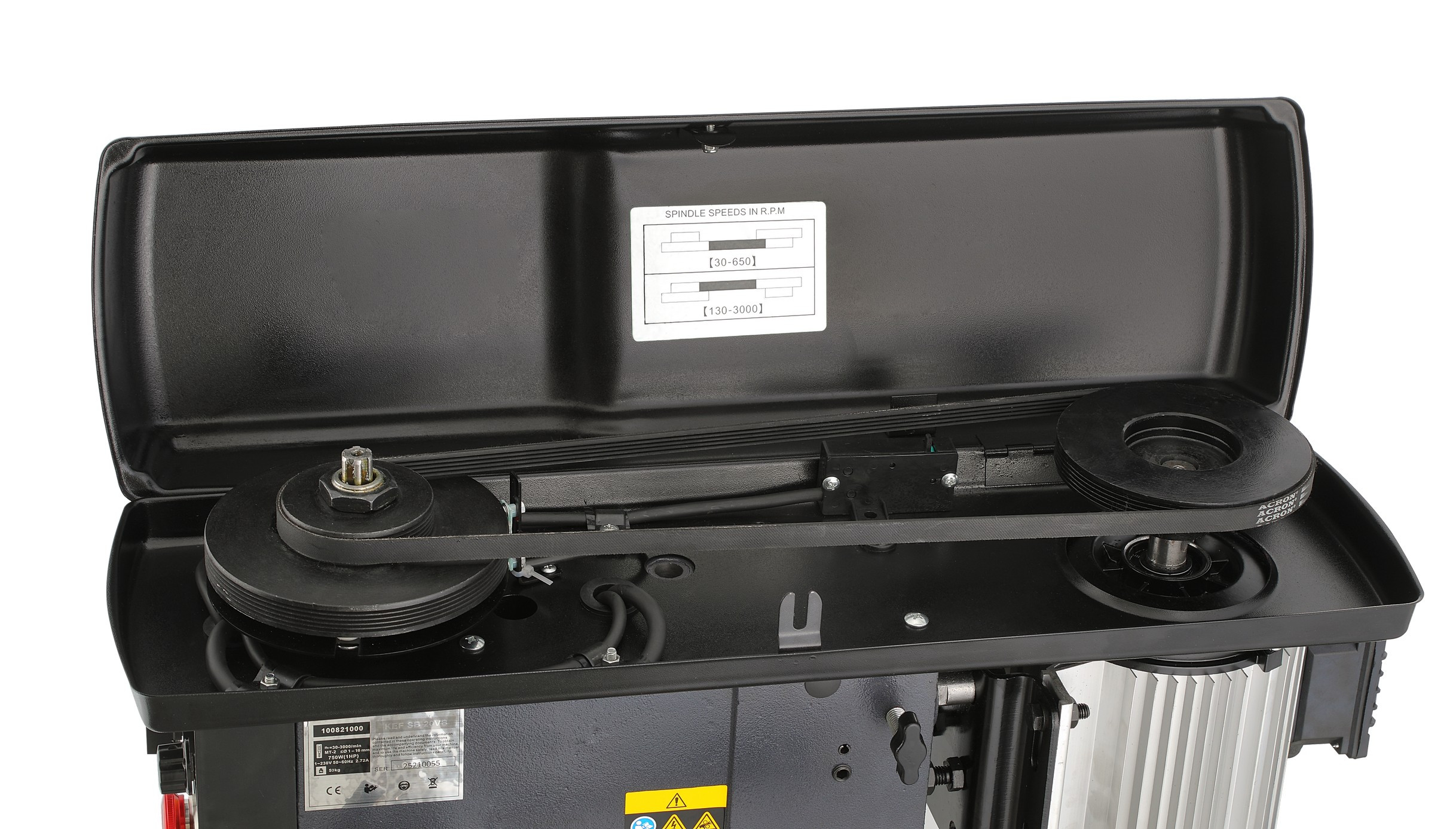

V-belt driven drill press
Item number: #100821000
KEF SB 20VB is a professional drill press for workshop and industry
Standard features:
Morse Taper | 2 |
Drill chuck (mm) | 16 |
Voltage | 3x400V - 50 Hz |
Number of spindle speeds | 2 |
Drilling Capacity (ø mm) | 20 |
Rpm | 30-3000 |

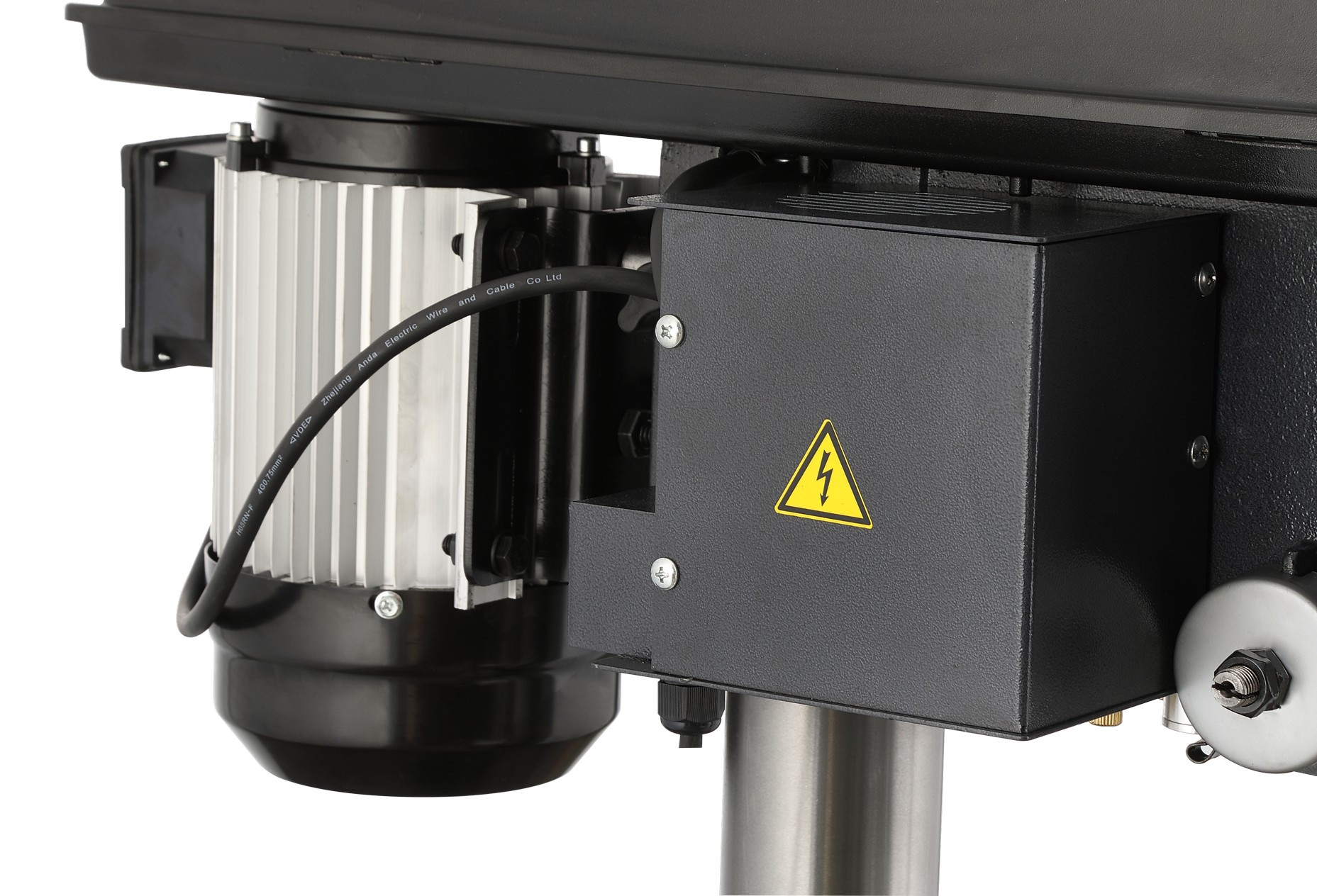

Motor (Watt) | 750 |
Throat depth (mm) | 190 |
Swing Capacity (mm) | 380 |
Max. distance spindle/table (mm) | 470/670 |
Max. spindle travel (mm) | 80 |

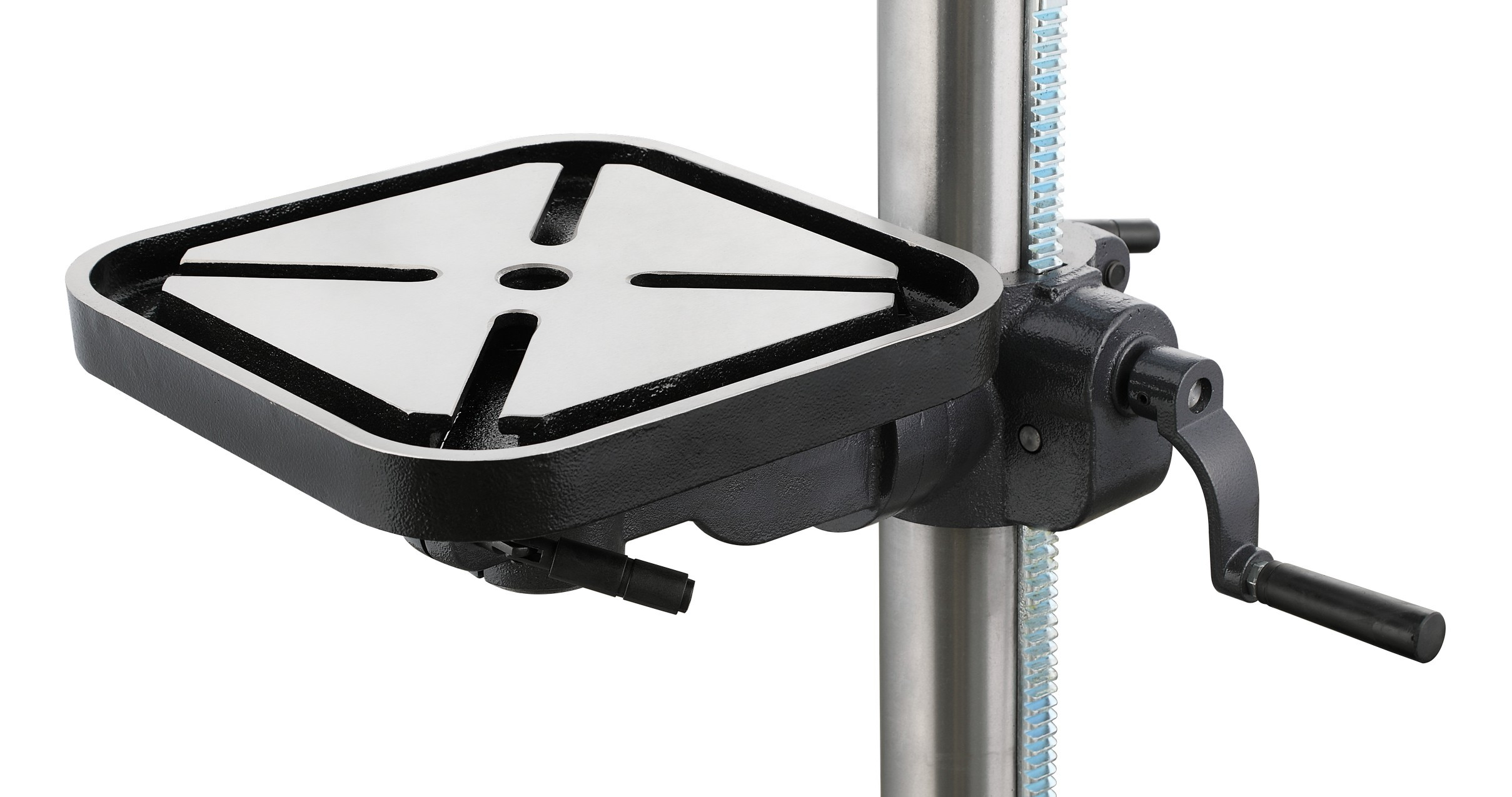

Max. tilt of table (+/-) | 45° |
Size of table (mm) | 270x270 |
Size of base (mm) | 520x310 |
Bench model | 1 |
Height (mm) | 1065 |
Max. load on table (kg) | 10 kg. |
Net weight (kg) | 61 |
