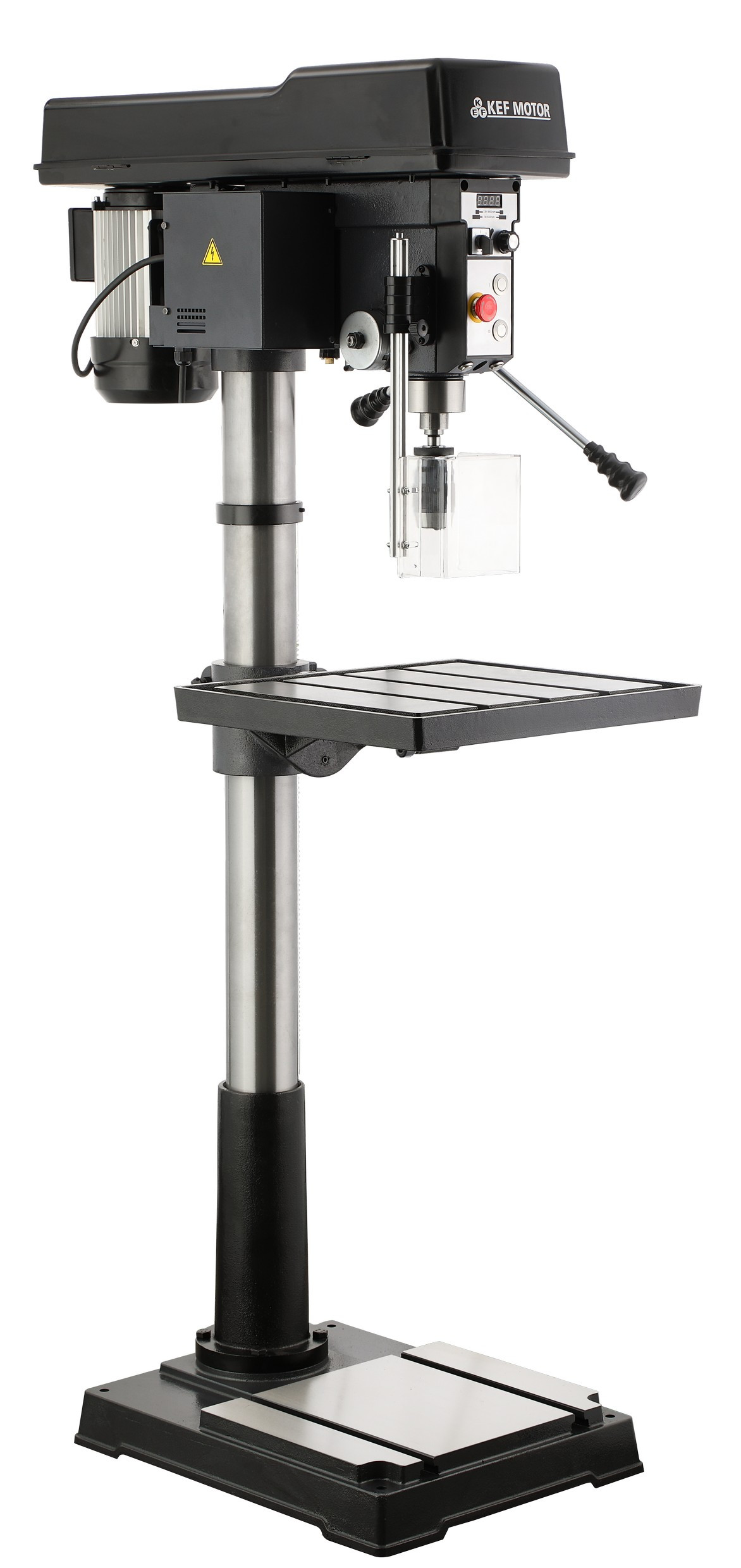

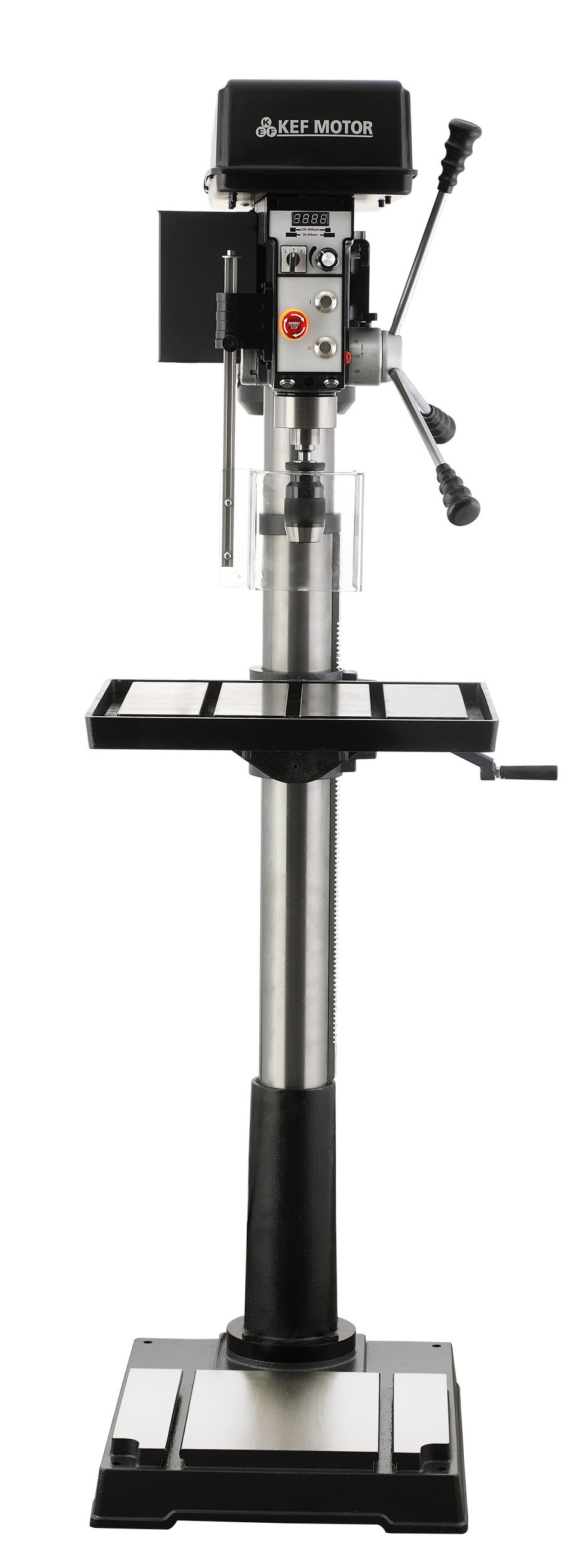

V-belt driven drill press

KEF SB 32VF

Item number: #100823000

Description

KEF SB 32VF is a professional drill press for workshop and industry

Standard features:

  • Variable speed 0-3000 rpm.
  • Left/right spindel direction
  • Morse Taper No. 3
  • Complete with auto lock...
    Read More >>
×

Product Specifications

Morse Taper 3
Drill chuck (mm) 16
Voltage 3x400V - 50 Hz
Number of spindle speeds 2
Drilling Capacity (ø mm) 32
Rpm 30-3000
Motor (Watt) 1500
Throat depth (mm) 255
Swing Capacity (mm) 510
Max. distance spindle/table (mm) 680/1170
Max. spindle travel (mm) 120
Max. tilt of table (+/-) 45°
Size of table (mm) 475x425
Size of base (mm) 575x450
Bench model 1
Height (mm) 1710
Max. load on table (kg) 10 kg.
Net weight (kg) 107

KEF - Quality since 1910

KEF-Motor was founded in 1910 in Copenhagen, Denmark and was most likely the first in world to make a double ended grinding and polishing machine. We know that many of our machines from the thirties and the forties are still running and see them from time to time being used on the market, where they are being offered.

The company has always been known for its high-quality products within grinding and polishing machines as well as its engines. The product range consists of deburring machines, bench grinders, polishing machines, centerless grinding machines, double belt grinders, geared drill presses, belt grinders, pipe notchers, drill sharpening machines, support grinding machines as well as dust extractions and filter units.

The products are manufactured by Scantool Group at our production sites in Brovst, Denmark and in Poland. Our trademarks are high quality, attention to detail and experience

Many of the motors which are installed in our machines are manufactured at our motor production in Brovst or by one of our suppliers according to our specifications. We have set a very high-quality standard and offer a 5-year warranty* for our motors.

All machines are proudly manufactured according to our high standards, specifications and are representing our KEF brand – With this we guarantee you top quality and service.

*Applies only to selected machines.
